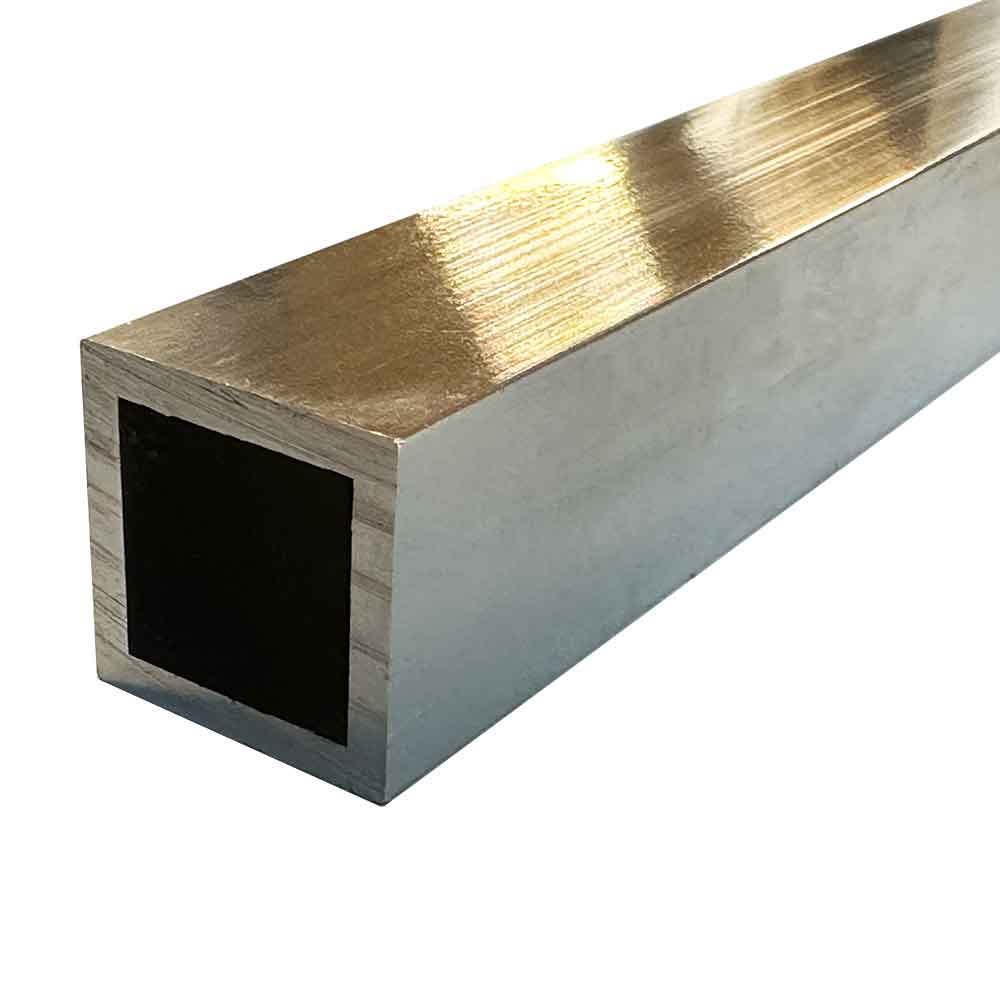

20mm x 20mm x 2mm Aluminium Square Tube


Length: 1000 mm
Price:
Sale price£8.40
Inc. Vat
Sale price£7.00
Exc. Vat
Weight:
0.39kg

Please note, the longest length option is the original length of the product. All shorter options are cut from the original product using a high precision TCT blade. The cutting tolerance for these options is + / - 5mm.

Description

SKU AL_ST_6060_20x2/1000mm
Grade 6060
Weight - Kg/m 0.39
Measurement Type Metric
Size 20 mm x 20 mm x 2 mm
Internal Dimension 16 mm x 16 mm
Wall Thickness 2 mm
Metric Size 20 mm x 20 mm x 2 mm
Finish Standard Mill Finish
Proof Stress 120 Min MPa
Tensile Strength 160 MPa
Shear Strength 86 to 130 MPa
Elongation 8 Min %
Density 2.70 g/cm³
Melting Point 655 °C
Thermal Expansion 23.4 x10^-6 /K
Modulus of Elasticity 69.5 GPa
Thermal Conductivity 209 W/m.K
Electrical Resistivity 0.032 x10^-6 Ω .m
Machinability Average
Workability - Cold Good
Weldability - Gas Good
Weldability - Arc Very good
Weldability - Resistance Good
Brazeability Very good
