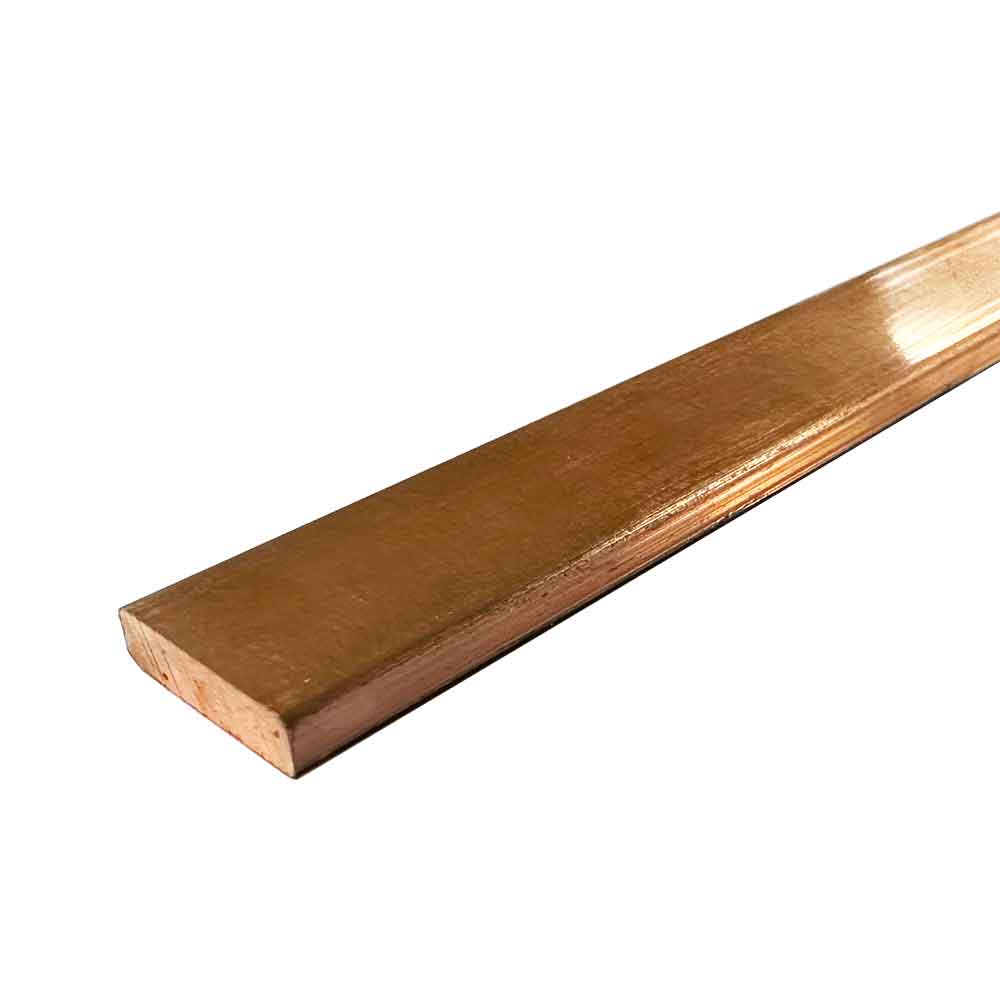

50.8mm x 3.2mm (2" x 1/8") Copper Flat Bar


Length: 1000 mm
Price:
Sale price£51.84
Inc. Vat
Sale price£43.20
Exc. Vat
Weight:
1.44kg

Please note, the longest length option is the original length of the product. All shorter options are cut from the original product using a high precision TCT blade. The cutting tolerance for these options is + / - 5mm.

Description

SKU C_FB_390/1000mm
Grade CW004A / C101
Weight - Kg/m 1.44
Measurement Type Imperial
Metric Size 50.8 mm x 3.175 mm
Finish Standard Mill Finish
Thickness 1/8 in (3.175 mm)
Proof Stress 50 to 340 MPa
Tensile Strength 200 to 360 MPa
Elongation 50-5 %
Density 8.92 g/cm³
Melting Point 1083 °C
Thermal Expansion 16.9 x10^-6 /K
Modulus of Elasticity 117 GPa
Thermal Conductivity 391.1 W/m.K
Electrical Resistivity 0.0171 x10^-6 Ω .m
Machinability Poor
Workability - Cold Good
Weldability - Gas Poor
Weldability - Arc Average
Weldability - Resistance Poor
Brazeability Good

METAL HOW YOU WANT IT

Our custom cutting services ensure you get the size you need at the highest quality. With ongoing investment into our plant and machinery combined with regular maintenance and calibration, we aim for consistency and exceptional results. We offer a range of services using the right equipment and skilled metal workers.

Bar Cutting - We specialise in short lead times and high volume production. To achieve this we use a range of CNC controlled twin pillar type bar saws, cutting to a maximum diameter of 12". We also have the facility to cut tubes and sections (Close tolerances available upon request).

Sheet Guillotining - High capacity hydraulic shearing to close tolerances. Maximum thickness 6mm for aluminium products. A temporary plastic coating will be applied to all of our sheet products prior to cutting, to ensure a scratch-free, clean surface. This coating is easy to peel off once you're ready to put the material in place.

Plate Sawing - Blanks cut to customer requirements on a +2mm/ -0mm tolerance. High volume production capabilities and short lead times are available. Currently we offer up to 4" (101.6mm) in thickness, with a maximum length 2500mm. Please note we stock all common commercial grades and speciality cast tooling plate. Any requirements outside of our standard offering, please feel free to email our sales team.
