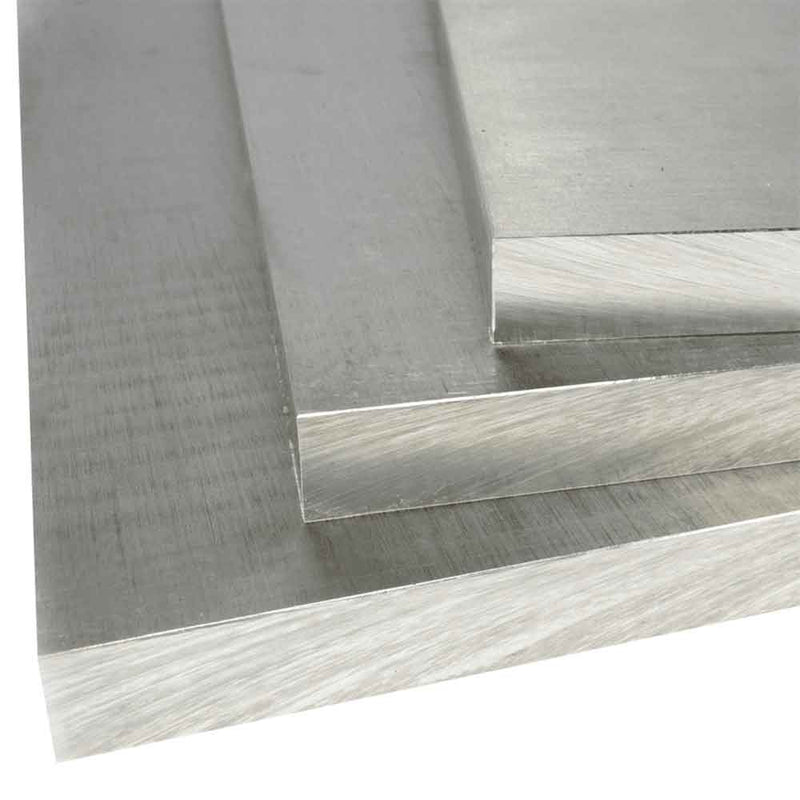

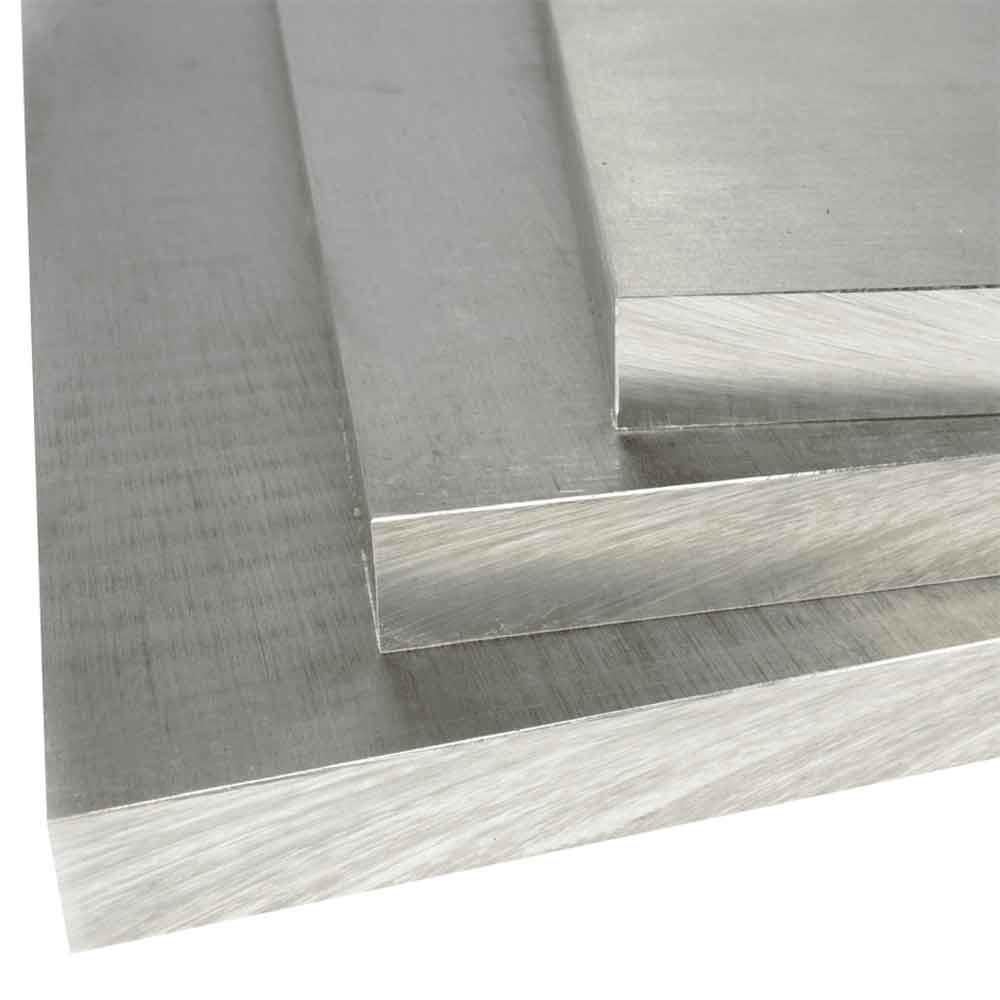

Custom Cut - 10mm - 6082 - Aluminium Plate
Price:
£4.27 (exc VAT)
/ £5.12 inc. VAT
Ships as early as 3-5 business days
Collection available at Aluminium Warehouse.
Usually ready in usually ready in 2-4 days.
Pick up location:
Aluminium Warehouse Ltd, Unit A1, River Way, River Way Industrial Estate
Harlow CM20 2DP
United Kingdom
+448005200729
Frequently bought together
Product Specifications
Description
Aluminium Warehouse stock a wide range of Aluminium Plate in various thicknesses and grades. Using our ‘Cut To Size’ service you can have immediate access to custom sized plate at your fingertips. Simply input your dimensions and quantities above, for a quick and easy metal-buying experience.
Aluminium Plate is one of the most popular alloys. A blank canvas for many DIY and commercial applications. Typically used in components for:
- Shipbuilding
- Rail cars
- Vehicle bodies
Aluminium alloys are alloys where the principal metal is aluminium.
| GRADE |
DESCRIPTION
|
| 5083 O |
Often referred to as N8, our Aluminium 5083 is known for exceptional performance in extreme environments. 5083 is highly resistant to attack by both seawater and industrial chemical environments.
Alloy 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use in temperatures in excess of 65°C.
|
| 6082 T6 |
Also known in the metal industry as H30, our Aluminium alloy 6082 is
a medium strength alloy with excellent corrosion resistance. It has the highest strength of the 6000 series alloys.
Alloy 6082 is known as a structural alloy. In plate form, 6082 is the alloy most commonly used for machining.
|
| ECOCAST |
Ecocast is a fine milled and high precision continuous cast aluminium tooling plate. Using this superior grade provides reduced set-up
times, reduced machining times and extended tool life.
Other benefits of this grade include; excellent machinability and weldability, high corrosion resistance and good low temperature properties.
|
Specifications
| Metal | Aluminium |
|---|---|
| Grade | 6082T6 |
| Metric size | 10 mm |
| Size | 0 |
| Density | 2.70 g/cm³ |
| Thickness | 10 mm |
| Width | Custom |
| Tensile strength | 210 MPa |
| Proof stress | 260 Min MPa |
| Modulus of elasticity | 70 GPa |
| Thermal conductivity | 180 W/m.K |
| Thermal expansion | 24 x10^-6 /K |
| Electrical resistivity | 0.038 x10^-6 Ω .m |
| Hardness | 95 HB |
| Elongation | 8 Min % |
| Shear strength | 84 to 220Â MPa |
| Brazeability | Good |
| Machinability | Good |
| Weldability (arc) | Good |
| Weldability (gas) | Good |
| Weldability (resistance) | Good |
| Workability (cold) | Good |
| Melting point | 555 °C |
