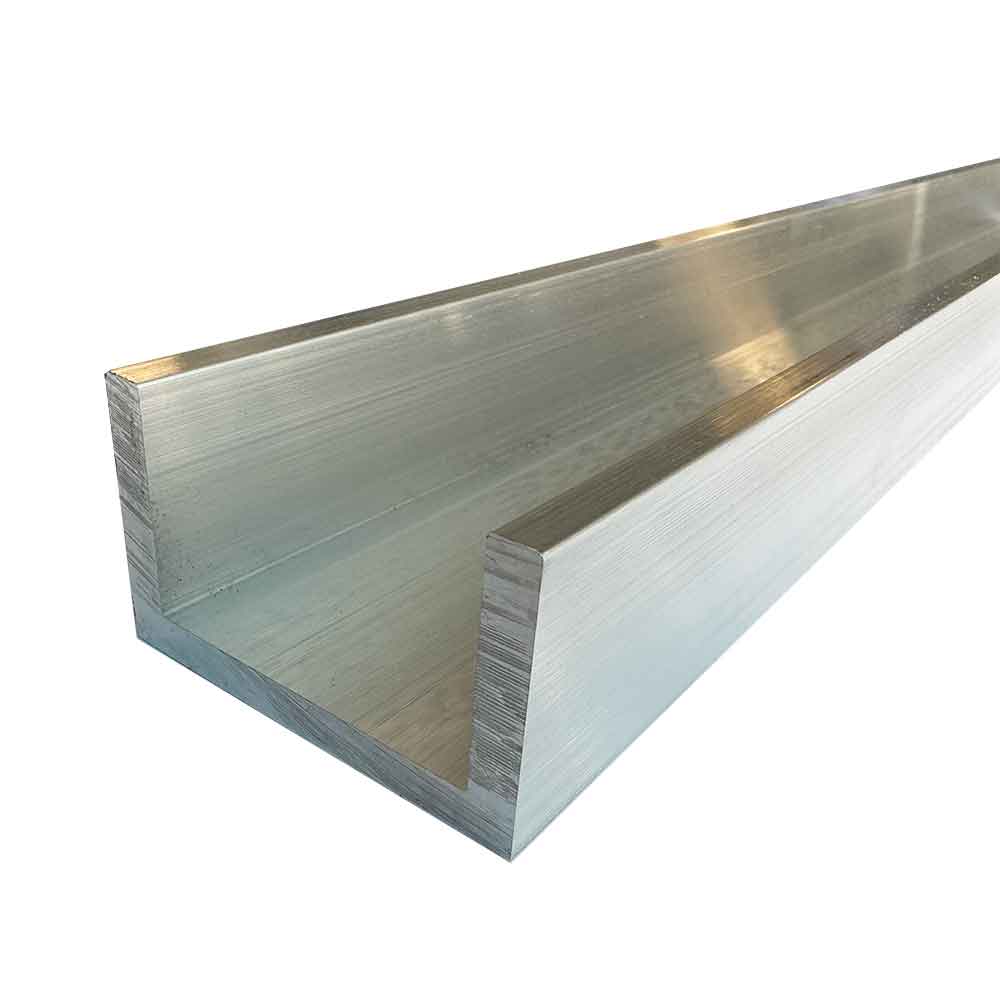

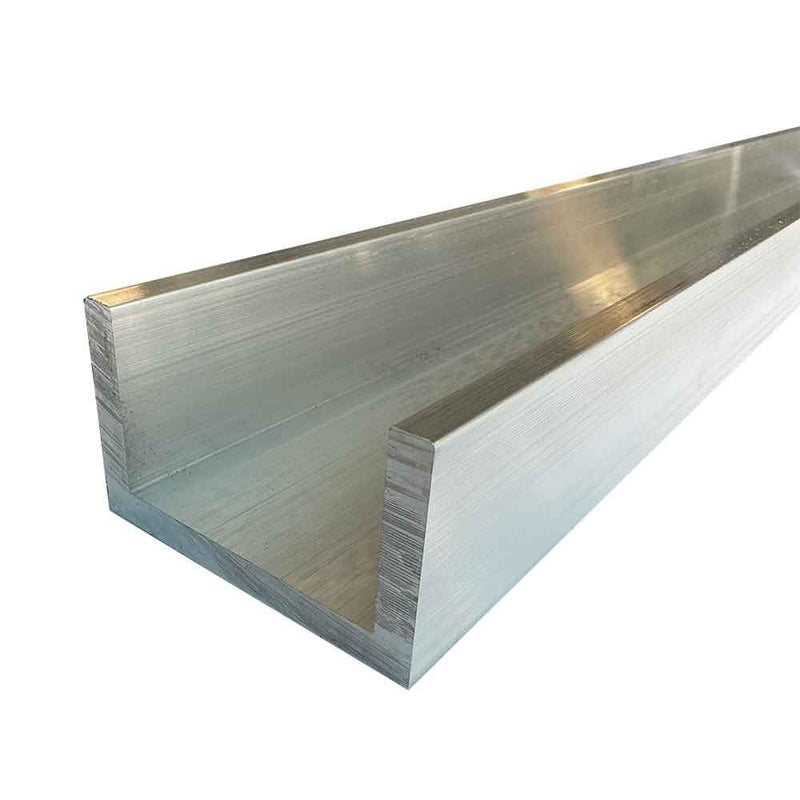

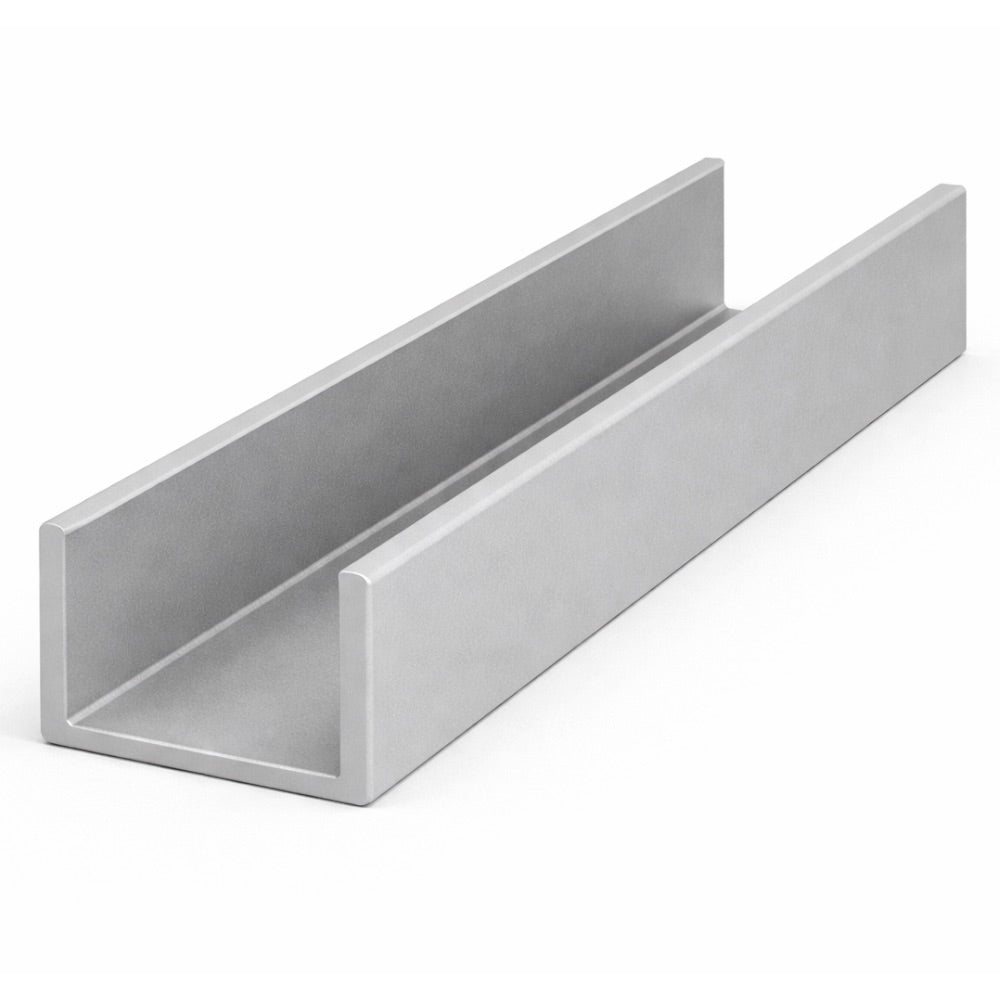

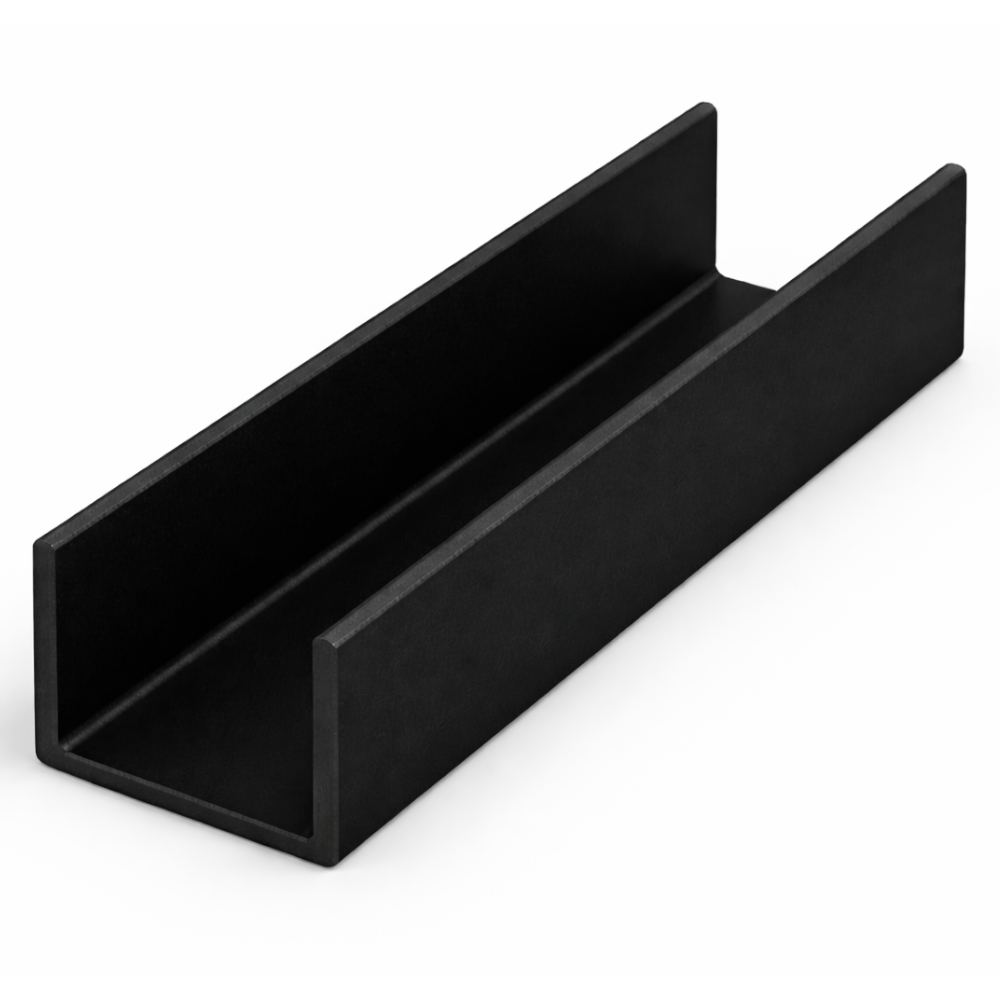

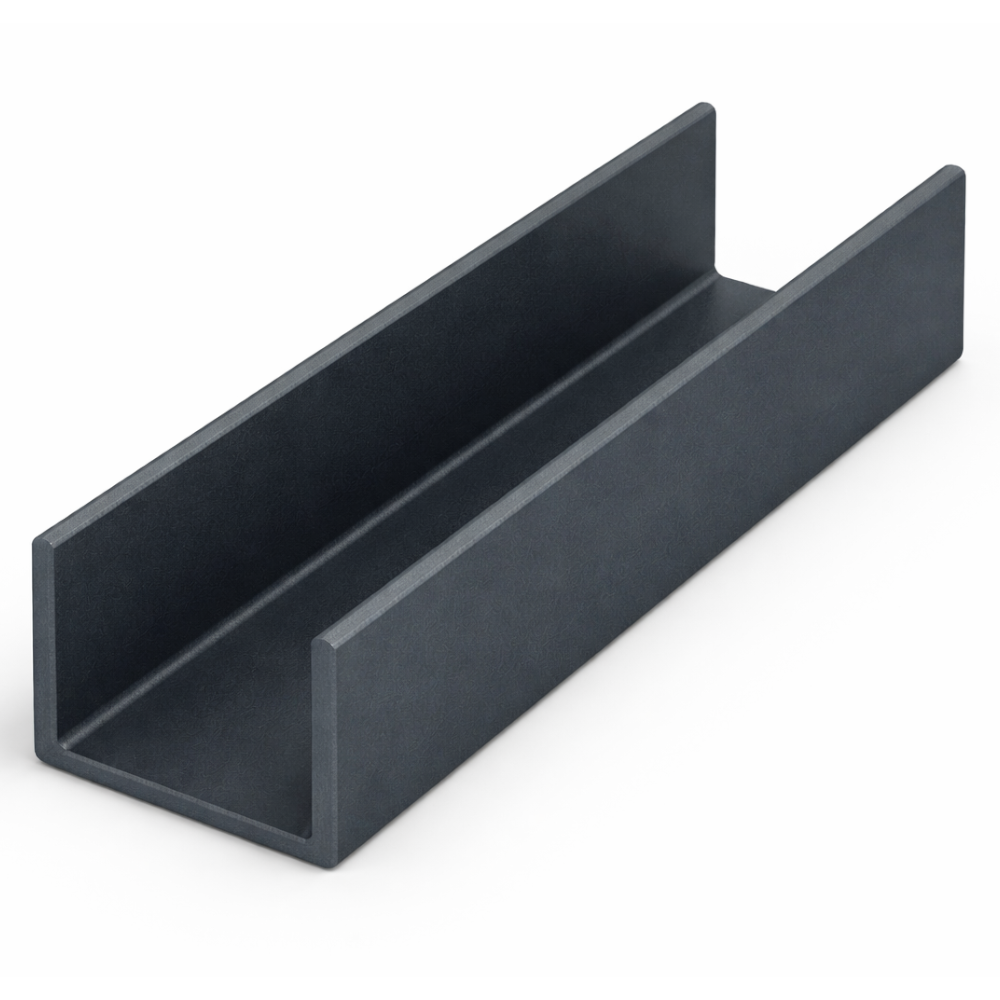

44.5mm x 25.4mm x 3.2mm (1 3/4" x 1" x 1/8") Aluminium Channel


Length: 1000 mm
Price:
Sale price£11.28
Inc. Vat
Sale price£9.40
Exc. Vat
Weight:
0.77kg

Please note, the longest length option is the original length of the product. All shorter options are cut from the original product using a high precision TCT blade. The cutting tolerance for these options is + / - 5mm.

Description

SKU AL040CH_44x25x3x3/1000mm
Grade 6082T6
Weight - Kg/m 0.77

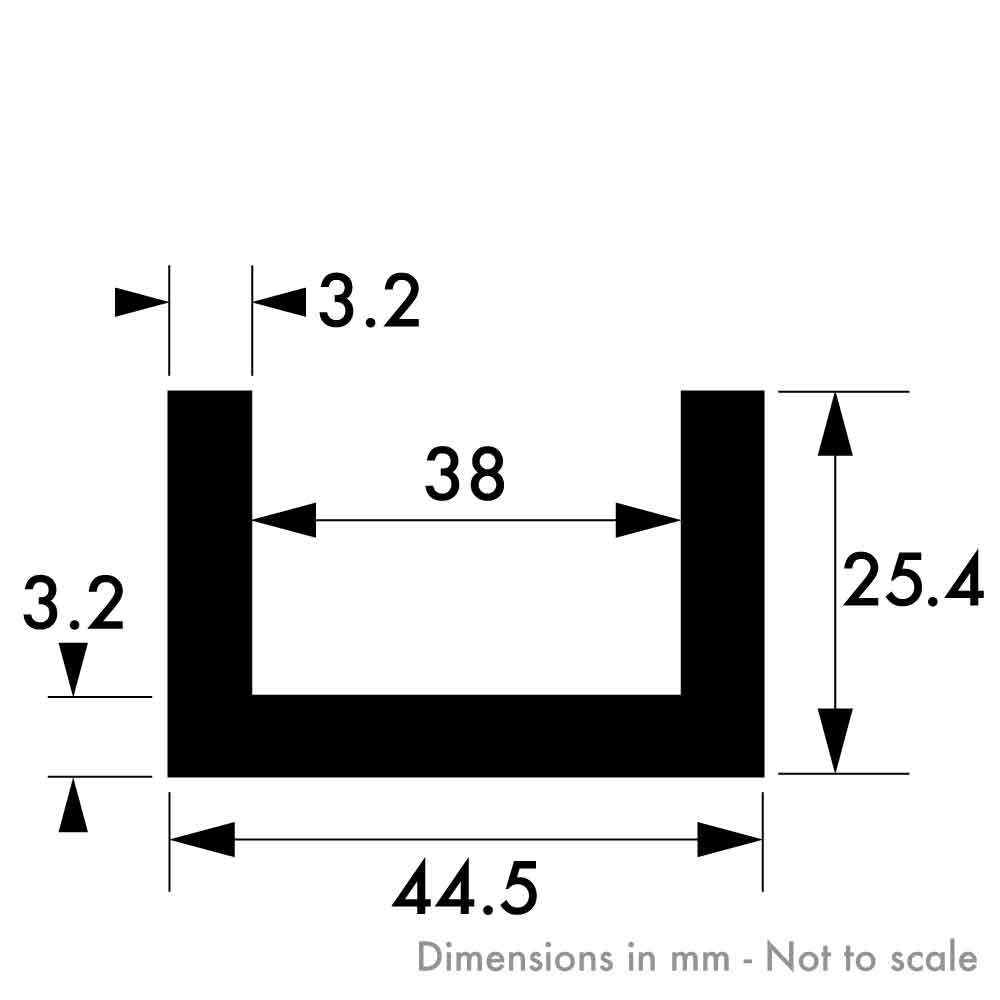

Metric Size 44.45 mm x 25.4 mm x 3.175 mm x 3.175 mm
Width 1 3/4 in (44.45 mm)
Height 1 in (25.4 mm)
Internal-Width 38 mm
Leg Height 1 in (25.4 mm)
Leg Thickness 1/8 in (3.175 mm)
Base Width 1 3/4 in (44.45 mm)
Base Thickness 1/8 in (3.175 mm)

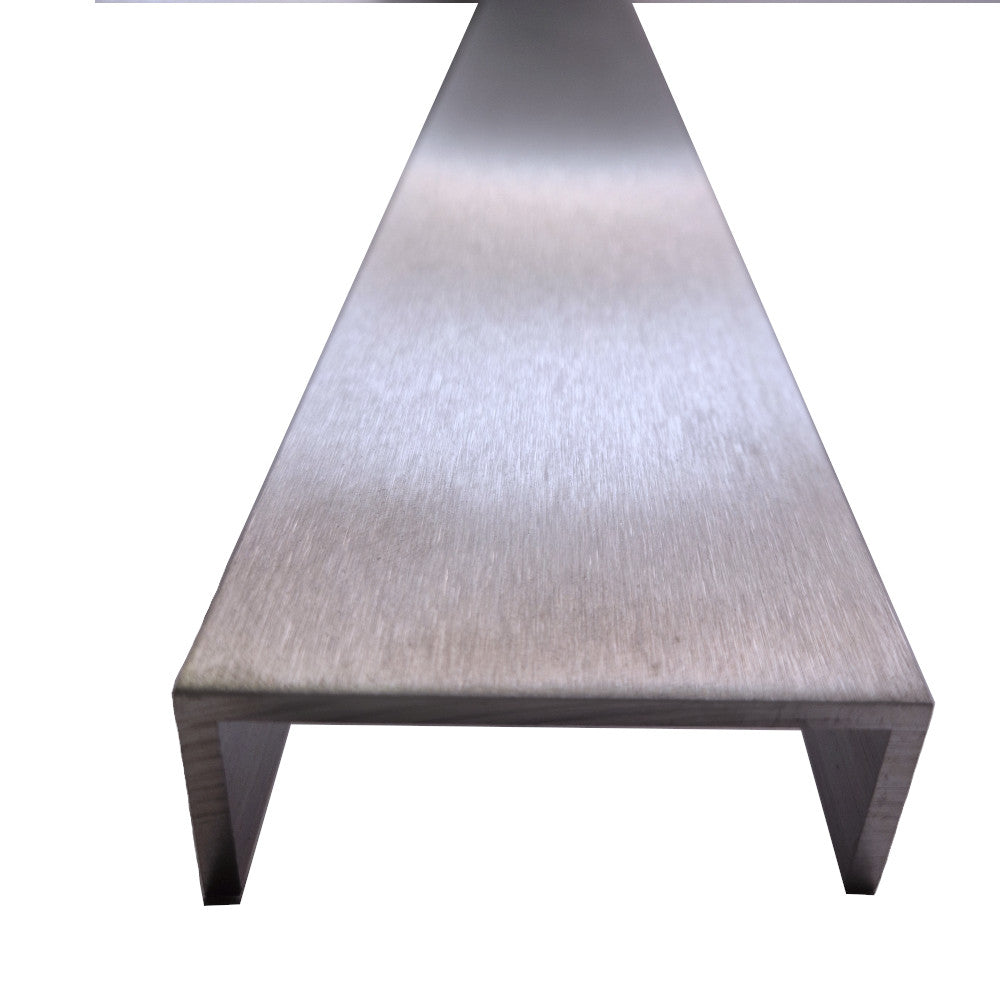

Finish Standard Mill Finish
Proof Stress 260 Min MPa
Tensile Strength 210 MPa
Elongation 8 Min %
Density 2.70 g/cm³
Melting Point 555 °C
Thermal Expansion 24 x10^-6 /K
Modulus of Elasticity 70 GPa
Thermal Conductivity 180 W/m.K
Electrical Resistivity 0.038 x10^-6 Ω .m
Machinability Good
Workability - Cold Good
Weldability - Gas Good
Weldability - Arc Good
Weldability - Resistance Good
Brazeability Good

METAL HOW YOU WANT IT

Our custom cutting services ensure you get the size you need at the highest quality. With ongoing investment into our plant and machinery combined with regular maintenance and calibration, we aim for consistency and exceptional results. We offer a range of services using the right equipment and skilled metal workers.

Bar Cutting - We specialise in short lead times and high volume production. To achieve this we use a range of CNC controlled twin pillar type bar saws, cutting to a maximum diameter of 12". We also have the facility to cut tubes and sections (Close tolerances available upon request).

Sheet Guillotining - High capacity hydraulic shearing to close tolerances. Maximum thickness 6mm for aluminium products. A temporary plastic coating will be applied to all of our sheet products prior to cutting, to ensure a scratch-free, clean surface. This coating is easy to peel off once you're ready to put the material in place.

Plate Sawing - Blanks cut to customer requirements on a +2mm/ -0mm tolerance. High volume production capabilities and short lead times are available. Currently we offer up to 4" (101.6mm) in thickness, with a maximum length 2500mm. Please note we stock all common commercial grades and speciality cast tooling plate. Any requirements outside of our standard offering, please feel free to email our sales team.
